2. NGINX Kubernetes Ingress Controller Deployment¶

2.1. Introduction¶

With the infrastructure in place to support the solution, the NGINX Ingress Controller deployment can begin.

What is NGINX Ingress Controller?

NGINX Ingress Controller provides a robust feature set to secure, strengthen, and scale containerized apps, including:

Advanced app centric configuration - Use role-based access control (RBAC) and self service to set up security guardrails (not gates), so teams can manage their apps securely and with agility. Enable multi tenancy, reusability, simpler configs, and more.
Visibility and performance monitoring - Pinpoint undesirable behaviors and performance bottlenecks to simplify troubleshooting and make fixes faster.

NGNIX Ingress Controller has two offerings, an open-source edition and a purchased supported solution. Both solutions come from NGINX; however, there are features and performance differences between the two offerings. Below are popular features and use cases.

This solution uses the purchased NGINX Ingress Controller.

Kubernetes deployments are typically maintained through manifest files. The deployment of the NGINX Ingress Controller will be created through manifests. Multiple Kubernetes resources can be made through a single file. When executed, Kubernetes will build all the resources.

Kubernetes resources types created:

Kubernetes namespace

Kubernetes service account

Kubernetes cluster role

Kubernetes clusterrolebinding

Kubernetes secret

Kubernetes configmap

Kubernetes ingressclass

Kubernetes customresourcedefinitions

NGINX Ingress Controller deployment

NGINX Ingress Controller service

NGINX Ingress Operator A Kubernetes Operator is a method of packaging, deploying and managing a Kubernetes-native application. The NGINX Ingress Operator for OpenShift is a supported and certified mechanism for deploying NGINX Plus Ingress Controller for Kubernetes alongside the default router in an OpenShift environment, with point-and-click installation and automatic upgrades.

2.2. Validate the NGINX Ingress Controller¶

In this Lab, we already installed the NGINX Ingress Operator from the OpenShift console.

we also deployed the NGINX Plus Ingress Controller for Kubernetes deployment.

In the terminal window copy the below text and paste+enter, to verify that the Operator is running
```

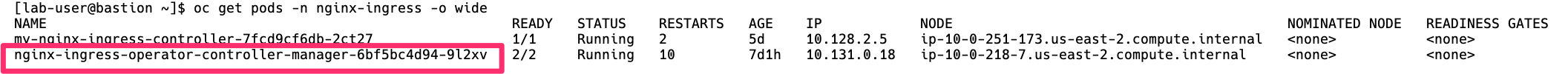

oc get pods -n nginx-ingress -o wide
```
From OpenShift Console, Click Operators -> Installed Operator in the left navigation column. On the page that opens, click the Nginx Ingress Controller link in the Provided APIs column. NginxIngressController is a custom resource which the Operator uses to deploy the NGINX Plus Ingress Controller on the OpenShift cluster.
Validate that the NGINX Ingress Controller is running

Note

If the NGINX Ingress Controller Pod is not in a running state, verify the image:tag value is correct from deployment manifest

run this command in a terminal, to verify that the NGINX Ingress Controller is running:
```
oc -n nginx-ingress get pods -o wide
```
Example:

Expose the NGINX Ingress Controller Dashboard

NGINX Ingress Controller (all purchased editions) have an internal dashboard that can be exposed. The Dashboard provids analytic stats of services deployed on NGINX. These stats can also be exposed to collection systems like Prometheus.

Use wget to download the dashboard yaml.

wget https://raw.githubusercontent.com/f5devcentral/f5-digital-customer-engagement-center/main/solutions/delivery/application_delivery_controller/nginx/kic/templates/nginx-ingress-dashboard.yml

Next, we have to change the app selector in the yaml file. We can do this with the sed command.

sed -i 's/app\:\ nginx-ingress/app.kubernetes.io\/name\:\ nginx-ingress/' nginx-ingress-dashboard.yml

The yaml should now look like this:

apiVersion: v1
kind: Service
metadata:
  name: dashboard-nginx-ingress
  namespace: nginx-ingress
  annotations:
    service.beta.kubernetes.io/aws-load-balancer-backend-protocol: "tcp"
spec:
  type: LoadBalancer
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP
    name: http
  selector:
    app.kubernetes.io/name: nginx-ingress

Expose the Dashboard. In the terminal window copy the below text and paste+enter:

oc apply -f nginx-ingress-dashboard.yml

See the NGINX Ingress Controller services

Warning

The EXTERNAL-IP values will be used during several parts of the lab, in AWS this is an FQDN. It is recommended to copy these to an easily referenceable location like a clipboard/digital notepad

The deployment of NGINX Controller Ingress contains two Kubernetes services: Ingress and the other for Dashboard.

In the terminal window, copy the below text and paste+enter:
```
oc get svc --namespace=nginx-ingress
```
Example:

Export the NGINX Ingress Controller services

Interacting with the NGINX Ingress Controller is more comfortable with exporting the service External IPs into system variables. This allows for templating to take place when we expose our applications.

In the terminal window copy the below text and paste+enter:

export dashboard_nginx_ingress=$(oc get svc dashboard-nginx-ingress --namespace=nginx-ingress | tr -s " " | cut -d' ' -f4 | grep -v "EXTERNAL-IP")

export nginx_ingress=$(oc get svc my-nginx-ingress-controller --namespace=nginx-ingress | tr -s " " | cut -d' ' -f4 | grep -v "EXTERNAL-IP")

Browse to the exposed NGINX Ingress Controller services

Note

The Dashboard and the Ingress websites will take a few minutes to become available (1-3 Minutes)

There is nothing yet deployed on NGINX Ingress Controller. However, the Dashboard and the Ingress are active. When the services were created in Kubernetes, Kubernetes created an AWS ELB. These ELBs allow for access to the services, and if the NGINX services ever scale, they will dynamically be added.

NGINX Dashboard URL (replace with the dashboard-nginx-ingress EXTERNAL-IP): http://EXTERNAL-IP/dashboard.html

Example:

NGINX Ingress Controller URL (replace with the nginx-ingress EXTERNAL-IP): http://EXTERNAL-IP/

Example:

The NGINX Ingress Controller services have been created and exposed

At this point, we can deploy our applications, and provide access through NGINX!

Proceed to Arcadia Application | Deployment
